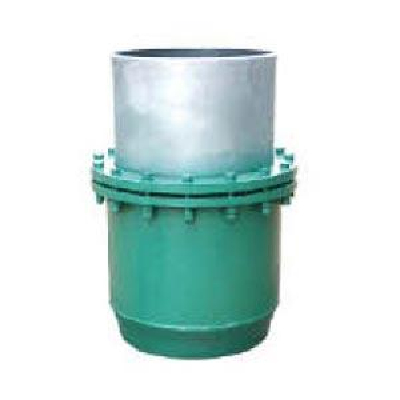

Sleeve compensator is a directly installed in a unidirectional conveying no corrosion or multidirectional fluid of the compensator which are mainly constituted by sleeve, cover and sealing material etc. For compensation for pipeline of axial expansion and axial rotation of any angle, with the characteristics of small size and the large amount of compensation, widely used in the pipeline of heating supply, metallurgy, mining, power generation, petrochemical, construction and other industries.

 Sleeve of compensator is connected with pipe directly, using the principle and structure of the high-performance self-pressure dynamic sealing, slide freely with the expansion and contraction of the pipe which can adapt sealing requirement of any pipeline. Using a new synthetic material sealed between the outer shell and sleeve, high temperature, corrosion and aging resistance, suitable temperature -40℃to 450℃, special circumstance up to 550℃, which can not only ensure the axial sliding but also the mediumwithin pipe no leakage.

 Sleeve compensator design anti-tension-break device to ensure its expansion to the limit position is not opened, so that the security of the entire pipe network operation improved greatly.

 Sleeve compensator can reasonably eliminate the stress cause from pipeline linear compensation and angle compensation during the installation.

ChenXin is professional manufacture for the production of sleeve compensator, spherical compensator, rotary compensator and other non-standard sleeve compensator. The company has advanced sealing technology and mature production technology. Product design, production and acceptance refers to CJ/T3016.2 “Joint for district heating pipeline sleeve expansion joint” and HGJ533 “Self-tightening packing type pipeline expansion joint”, and aided design by computer, which make its structure more reasonable and rigorous. At the same time adhering to the “integrity of management, quality win”, the products have been trusted by the customers.
